Custom BNC Cable Assembly

BNC cable, also known as Bayonet Neill-Concelman Cable, is a type of coaxial cable commonly used in video and data transmission applications. It features a bayonet-style connector that provides a secure and reliable connection between devices.

One of the key advantages of BNC cables is their ability to carry high-frequency signals with minimal interference or signal loss. This makes them ideal for use in professional audio/video systems, CCTV surveillance systems, and networking equipment.

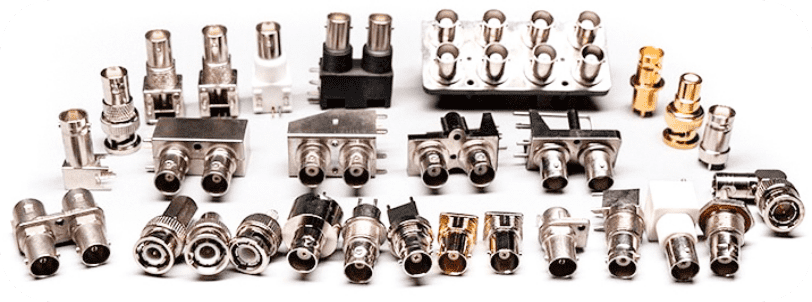

The BNC connector itself consists of two parts - a male plug and a female jack. The male plug has a central pin surrounded by a metal sleeve, while the female jack has an opening with slots to accommodate the pin and sleeve. When connected together, they create a tight connection that ensures proper signal transfer.

In addition to its excellent performance characteristics, BNC cables are also known for their durability and ease of use. They are designed to withstand frequent plugging/unplugging without compromising signal quality. Moreover, their compact size allows for easy installation even in tight spaces.

BNC cables come in various types such as RG-59/U (commonly used for analog video), RG-6/U (used for digital video), and RG-11/U (used for long-distance transmissions). Each type has specific impedance ratings and shielding capabilities tailored to different applications.

Custom BNC cable Manufacturer

More than 50,000pcs BNC cable Products Every Year in Hooha Harness
Hooha Harness is a professional manufacturer in the electronics industry, specializing in producing high-quality BNC cables. With our state-of-the-art production facilities and advanced technology, we are proud to manufacture over 50,000 pieces of BNC cables every year.

Get An Instant Quote

Why Choose Us?

200+ professional skill people work for your projects

20+ Years Focus one Wire Harness Assembly

6000+ Project Cases Experience

6,000,000pcs Wire Harness Capacity per Year

IPC/WHMA-A-620 Standard

1000+ Overmold Developing Tools Experience

Quote Now

Custom BNC Cable Assembly Cases

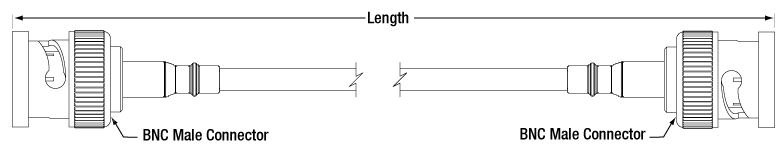

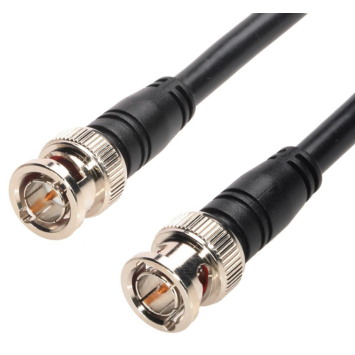

BNC to BNC Cable

This cable are widely use to Television and Broadcasting for Video Transmission, Monitoring and Surveillance. Networking and Telecommunications for Ethernet NetworksTelecom Equipment. Test and Measurement, Audio and Video, Broadcast, Medical, etc.

Quote Now

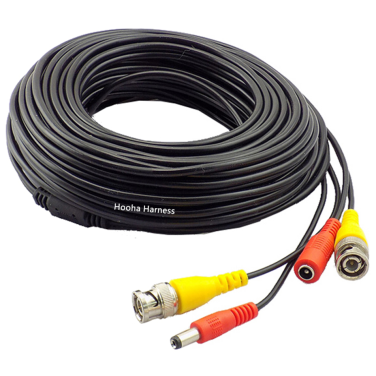

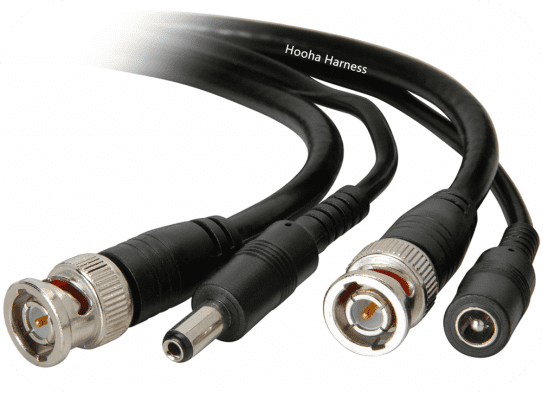

BNC Video Power Cable

This cable widely use to CCTV system, Broadcast and Professional Video, Security and Surveillance, Medical Imaging Equipment, Industrial and Scientific Applications, etc. advantage is implified Installation, Cost-Effective, Reduced Clutter and Reliability.

Quote Now

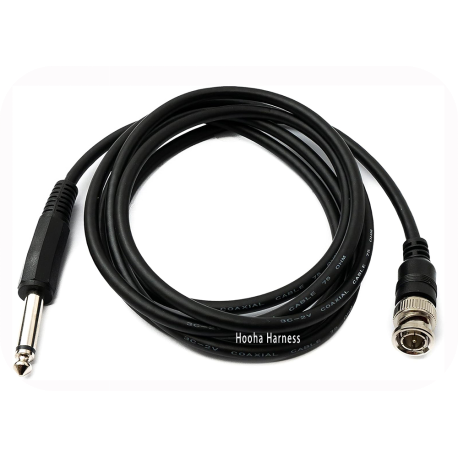

BNC to AUX Cable

In professional audio setups, such as radio stations or recording studios, BNC connectors are often used for timecode or word clock signals. A BNC to AUX cable might be used to interface such equipment with consumer-grade devices that use 3.5mm jacks.

Quote Now

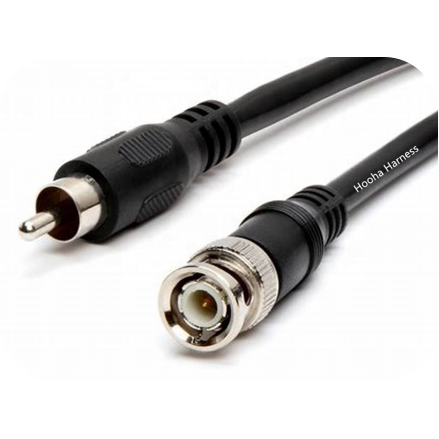

BNC to RCA Cable

BNC connectors are commonly used in closed-circuit television (CCTV) systems for connecting cameras to monitors or recording devices. If you have a monitor or recording device that uses RCA connectors, you can use a BNC to RCA cable to connect your CCTV camera to it.

Quote Now

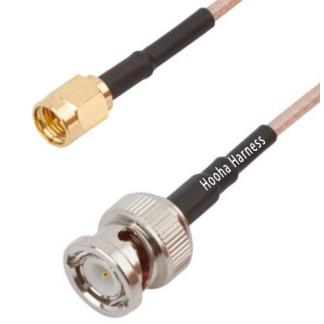

BNC to SMA Cable

Many RF test and measurement devices, such as spectrum analyzers, signal generators, and oscilloscopes, feature either BNC or SMA connectors. A BNC to SMA cable allows you to connect these devices together for signal analysis, testing, or calibration.

Quote Now

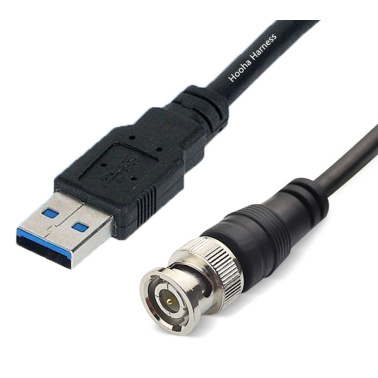

BNC to USB Cable

BNC cameras or CCTV systems often utilize BNC connectors to transmit video signals. With a BNC to USB cable, you can connect these cameras directly to a computer for monitoring, recording, or streaming purposes.

Quote Now

BNC to XLR Cable

BNC to XLR cables are commonly used in audio and video applications, particularly in professional settings, like Broadcasting, Studio Recording, Live Sound, Test and Measurement, Professional Video, and Security Systems.

Quote Now

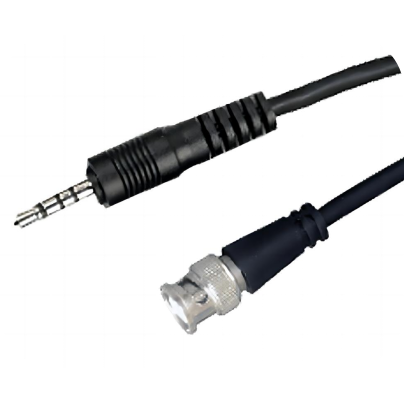

BNC to 3.5mm audio jack cable

BNC connectors are widely used in CCTV and video surveillance systems for transmitting video signals. The 3.5mm audio jack can be used for connecting audio devices such as microphones to the surveillance system, allowing for synchronized audio and video recording.

Quote Now

BNC to DB9 cable

In CCTV and other security systems, BNC connectors are frequently used for video transmission. If you need to connect a device with a DB9 serial port to a CCTV camera or video recorder, you might use a DB9 to BNC cable to facilitate communication.

Quote Now

Professional BNC Cable Manufacturer
We specialize in manufacturing high-quality BNC cables, providing professional connectivity solutions for consumer electronics and customized electronic devices. With direct factory shipment and ample stock availability, we are able to reduce costs, expedite delivery, and establish strong customer relationships.
Quote Now

Custom BNC Cables
As a professional BNC cable manufacturer, we supports customized BNC cables. As long as you provide detailed information, we can make a sample within 5 days as soon as possible. Since the cost of customized BNC cables can only be reduced by large-scale production, we do not accept customized services for one cable, and the specific minimum order quantity is determined according to different needs. Please feel free to contact us for details.
Quote Now

Quality Assurance
We take great pride in ensuring that all of our custom BNC cables are manufactured in strict accordance with the lPC/WHMA-A-620 standard. This internationally recognized standard sets forth rigorous guidelines for the design, materials, and manufacturing processes of BNC cables.
Our commitment to adhering to this standard guarantees that our customers receive high-quality products that meet or exceed industry requirements. By following these guidelines, we can ensure consistent performance and reliability across all our custom BNC cable offerings.
Quote Now

Stable quality
why our price always competitive but still offer high quality assembly service?
1. Stringent supplier audit is conducted to ensure a consistent supply of high-quality raw materials.
2. Impeccable IQC/IPQC/OQC quality control measures are implemented to significantly reduce the occurrence of defects.
3. State-of-the-art automated wire cutting, stripping, tinning, and soldering integrated machines are extensively utilized in accordance with IPC/WHMA-A-620 standards.
4. A comprehensive 100% continuity test is performed to guarantee that all products exhibit no circuit shorts, mismatches, or isolation breaks that could potentially cause harm.
Quote Now

BNC Cable Custom way
Based on Requirements (wire length, gauge, color, connector type, etc.)
Based on Drawing
Logo Printing / Packing box
Quote Now

Widely Applications
Broadcast and Video
Test and Measurement Equipment
Networking and Communications
RF and Microwave Systems

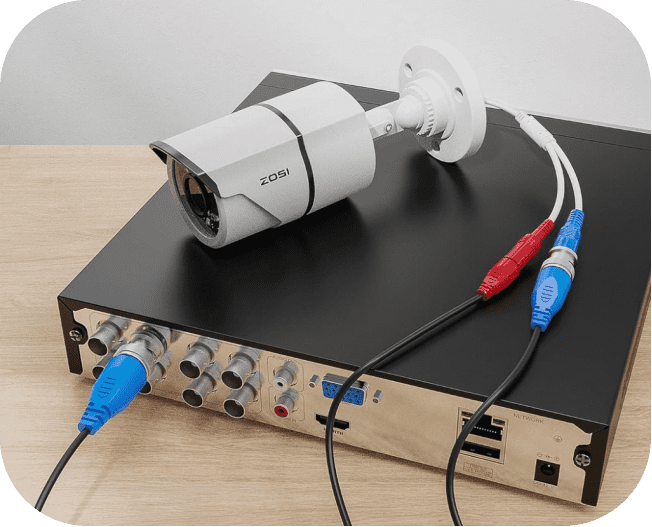

Security Surveillance
Aerospace and Military
Quote Now

Free of Quote
Please send us details of your require, also wire length, gauge, color, electric circuits, connector type, size, and order quantity. We will provide a quotation within three working days.
Additionally, we can also offer pricing based on drawings or samples.
Quote Now

How to Custom Your Wiring Harness

Quote Now

FAQ

1. How to customized my own products?

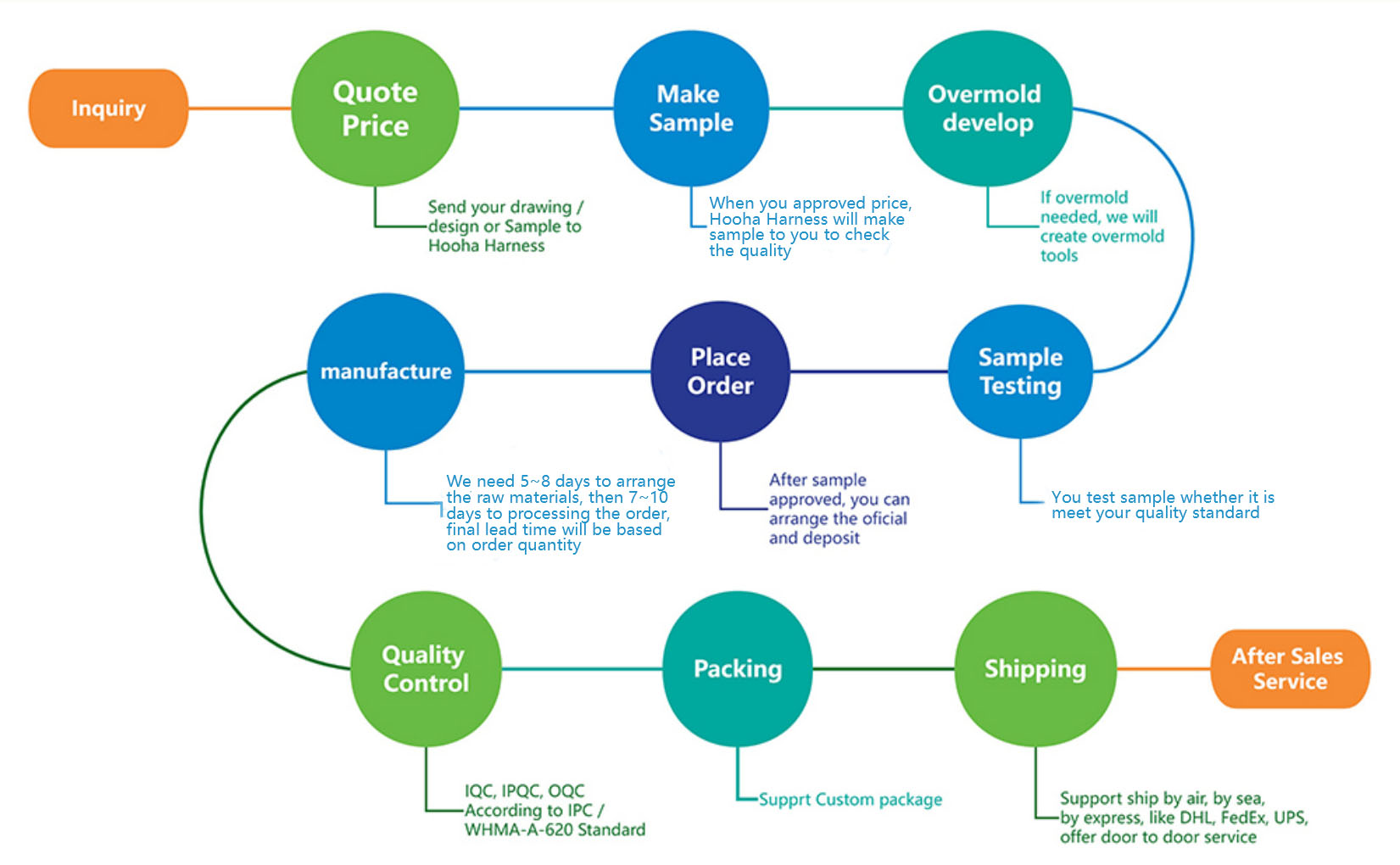

Send your sample or drawing/schematic requests → Feedback with quotation(1~3days) → Confirm quotation and make deposit payment → Make overmold if needed (7 days) → Mold test → Making samples(1~3 days) → Samples test(Approval) → place order for Mass production(2~3weeks) → Quality checking → Packing → Delivery → After Service → Repeat Order.

2. Can you provide us with samples?

We specialize in customized designs and made Samples are available free of charge(Value below $5.00 per unit, final costs depend on real needs) Sample lead time 3~10 working days

3. What delivery time for the regular order?

We deliver quality products on time every time, within 30 days of receiving confirmed orders. We support customers picking up goods from our factory directly.

4. What payment do you support?

T/T, Credit Card, and PayPal are available.

5. Can you help export goods to us?

We support Door-to-Door Delivery Services, small packages by Express like DHL, FedEx, UPS, etc. large volume shipping by air, sea, and train. We support customs and tax clearance, and small value no customs duties.

6. What is the warranty policy?

After Sales Service:Continuous and satisfactory service for repair or replacement, Strong support for failure analysis. Warranty Time:1~3 years.

7. HelpBuy Support:

If you require procurement assistance from other factories and consolidation of all goods into a single batch shipment, we can offer our buying service to help facilitate the process and ensure proper packing for shipping to your location.

8. Warehouse Support:

You order from us but do not require all goods to be shipped at once, we are able to assist in separating multiple batches according to your preference and ship them to you in any desired quantity.
