JST Connector Wiring Harness

JST Connector Wiring Harness is a specialized cable assembly used to connect and transmit power or signals within electronic devices. Known for their compact, efficient, and reliable design, JST connectors are widely used in consumer electronics, automotive, household appliances, communication equipment, and many other industries.

Key Features:

1.Compact Design: JST connectors are small and lightweight, making them ideal for applications where space is limited.

2.High Reliability: The connectors are designed to ensure secure and stable connections, reducing the risk of disconnection or signal loss.

3.Versatility: JST wiring harnesses are available in various configurations to suit different applications and requirements.

4.Ease of Use: These connectors are easy to assemble and disassemble, facilitating maintenance and upgrades.

5.Durability: Made from high-quality materials, JST connectors offer excellent resistance to wear, corrosion, and environmental factors.

Applications:

1.Consumer Electronics: Used in devices such as smartphones, tablets, and cameras.

2.Automotive: Applied in vehicle wiring systems, including lighting, sensors, and infotainment systems.

3.Household Appliances: Integrated into appliances like washing machines, refrigerators, and air conditioners.

4.Communication Equipment: Utilized in routers, modems, and other networking devices.

5.Industrial Equipment: Used in various machinery and control systems.

Advantages of Using JST Connector Wiring Harness

1.Compact Size: JST connectors are known for their small footprint, making them ideal for applications where space is limited. This compact design allows for more efficient use of available space in electronic devices and systems.

2.High Reliability: The design and engineering of JST connectors ensure a secure and stable connection. This reduces the risk of disconnection, signal loss, or power failure, enhancing the overall reliability of the device or system.

3.Ease of Assembly: JST connectors are designed for easy assembly and disassembly. This simplifies the manufacturing process, reduces labor costs, and allows for quick and easy maintenance and upgrades.

4.Versatile Applications: JST wiring harnesses come in various configurations and pin counts, making them suitable for a wide range of applications across different industries, including consumer electronics, automotive, household appliances, and industrial equipment.

5.Durability: Made from high-quality materials, JST connectors offer excellent resistance to wear, corrosion, and environmental factors. This ensures long-lasting performance even in harsh conditions.

6.Cost-Effective: The efficiency in design and ease of use translate to lower manufacturing and maintenance costs, making JST connector wiring harnesses a cost-effective solution for many applications.

7.Safety Compliance: JST connectors meet various international safety and quality standards, ensuring that they provide safe and reliable connections in all applications.

JST Connector Wiring Harness

Closely work with JST Brand

More than 8,000,000pcs JST Connectors are used Every Year in Hooha Harness
Every year, we buy a large number of JST connectors used for all kinds of custom wire harness assembly, according to the regular usages, we stock many connectors in our warehouse, like XH, PH, JWPF, GH, SM, SUR, VH, ZH, PA, EH, etc. this could help us delivery products to our customer on time.

Get An Instant Quote

Part of JST Series connectors

0.5mm Pitch Series

FWG

0.8mm Pitch Series

SUH, SUR

1.0mm Pitch Series

SH, SHD, SR, SSR, APSH, CSH, NSH, NSHD, SHJ, SHLD, SHLV, TCS

1.2mm Pitch Series

ACH

1.25mm Pitch Series

AGH, GERD, GH, GX, GHD, GVH, GEZ, FOX

1.5mm Pitch Series

CZ, SZN, CZH,CZF, ZH, ZE, ZR, ZND, ZPD, ZA, ZM, ZND, ZWP, ZIM

2.0mm Pitch Series

PA, PAD, PBD, PH, PHD, PID, PJD, PLI, PND, PNI, PUI, SAN, SGN, SJN, JWPF, CPM, PBD, CK, CR, DR, KR, KRW, PAF, DA, DD, PAL, TR, CMEC, CPM, CPT, MEC, PAMU, ULH, WMCB

2.2mm Pitch Series

BMSC, JFA J1000, HIC, SHC

2.5mm Pitch Series

SM, EN, EH, NH, XA, XAD, XH, SCN, RCY, HR, NR, XAF, JFA J2000, LEX, PXA, XAD, XAG, XM, XMA, XNI, DB, HM, THR

2.54mm Pitch Series

RA, RF, RE, AIT, ATLF, ATSS, HCH, HCM

3.0mm Pitch Series

BSS

3.3mm Pitch Series

J-FAT, BNI, HIL

3.96mm Pitch Series

VH, SDN, HL, VU, VR, BL, SL

4.0mm Pitch Series

BH, JWPS, PSI, BHM, MSAI

4.5mm Pitch Series

EL, YL, YLN

5.0mm Pitch Series

DV, NV, SV, V, WPJ, XL, HYV, ZL

5.08mm Pitch Series

JFA J300, LC, LC-L, VB

6.0mm Pitch Series

JFA

6.2mm Pitch Series

6.35mm Pitch Series

JFA J4000

6.5mm Pitch Series

VYH

7.0mm Pitch Series

MWP

7.5mm Pitch Series

JFA-B

8.0mm Pitch Series

BH, LV, PSI

Quote Now

JST Connector Wiring Harness Cases

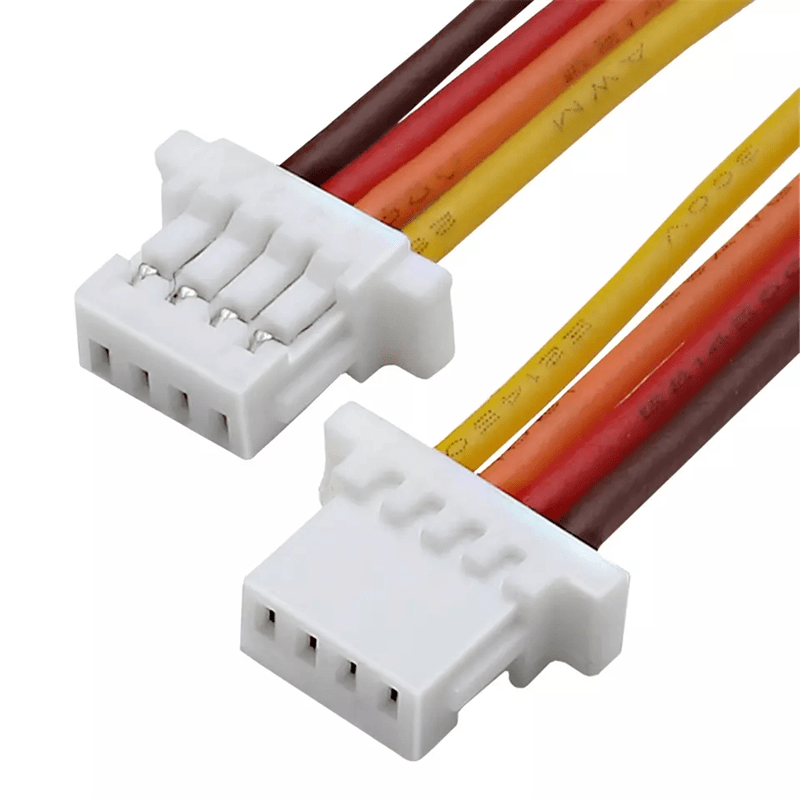

JST SUR connector wire harness

Connector support from 2Pin to 22Pin.
Fit wire size: 0.5A AC, DC (32AWG); 0.2A AC, DC(36AWG).
Voltage rating: 30V DC.

Quote Now

JST SH connector wire harness

Connector support from 2Pin to 20Pin. Header support from 2P to 20P. Terminal fit for 32AWG~28AWG (OD: 0.4-0.8mm). Current rating: 1.0A AC/DC (28AWG). Voltage rating: 50V AC/DC.

Quote Now

JST GH connector wire harness

Connector support from 2Pin to 15Pin. Header support from 2P to 15P. Terminal fit for 30AWG~26AWG (OD: 0.76-1.0mm). Current rating: 1.0A AC/DC (26AWG). Voltage rating: 50V AC/DC.

Quote Now

JST SZN connector wire harness

Connector support from 2Pin to 13Pin. Terminal fit for 30AWG~26AWG (OD: 0.7-1.1mm). Current rating: 0.7A AC/DC (26AWG). Voltage rating: 50V AC/DC.

Quote Now

JST ZH connector wire harness

Connector support from 2Pin to 13Pin. Terminal fit for 32AWG~26AWG (OD: 0.5-1.1mm). Header support from 2P to 13P. Current rating: 1.0A AC/DC (26AWG). Voltage rating: 50V AC/DC.

Quote Now

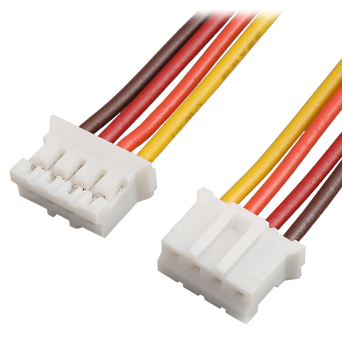

JST PH connector wire harness

Connector support from 2Pin to 16Pin. Terminal fit for 24AWG~30AWG (OD: 0.5-1.5mm). Header support from 2P to 16P. Current rating: 2A AC/DC (24AWG). Voltage rating: 100V AC/DC.

Quote Now

JST SAN connector wire harness

Connector support from 2Pin to 15Pin. Terminal fit for 30AWG~24AWG (OD: 0.9-1.3mm). Current rating: 2A AC/DC (24AWG). Voltage rating: 250V AC/DC.

Quote Now

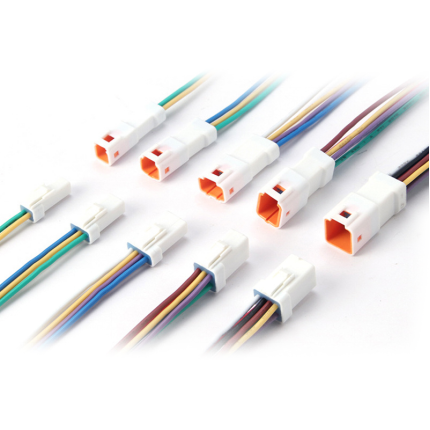

JST JWPF connector wire harness

Connector support 2P, 3P, 4P, 6P, 8P. Terminal fit for 26AWG~22AWG (OD: 1.4-1.7mm). Current rating: 3A AC/DC (22AWG). Voltage rating: 100V AC/DC.

Quote Now

JST SCN connector wire harness

Connector support from 2Pin to 16Pin. Terminal fit for 28AWG~22AWG (OD: 0.9-1.7mm). Current rating: 3A AC/DC (22AWG). Voltage rating: 250V AC/DC.

Quote Now

JST SM connector wire harness

Connector support from 2Pin to 12Pin and 18Pin. Terminal fit for 28AWG~22AWG (OD: 1.2-1.8mm). Current rating: 3A AC/DC max. Voltage rating: 250V AC/DC max.

Quote Now

JST EH connector wire harness

Connector support from 2Pin to 15Pin. Terminal fit for 32AWG~22AWG (OD: 0.5-1.9mm). Header support from 2P to 15P. Current rating: 3A AC/DC (22AWG). Voltage rating: 250V AC/DC.

Quote Now

JST NH connector wire harness

Connector support from 2Pin to 25Pin. Terminal fit for 30AWG~22AWG (OD: 0.9-1.7mm). Header support from 2P to 25P. Current rating: 3A AC/DC (22AWG). Voltage rating: 250V AC/DC.

Quote Now

JST PA connector wire harness

Connector support from 2Pin to 16Pin. Terminal fit for 28AWG~22AWG (OD: 0.76-1.5mm). Header support from 2P to 16P. Current rating: 3A AC/DC (22AWG). Voltage rating: 100V AC/DC.

Quote Now

JST XH connector wire harness

Connector support from 1Pin to 16Pin and 20Pin. Terminal fit for 30AWG~22AWG (OD: 0.9-1.9mm). Header support from 2P to 16P and 20P. Current rating: 3A AC/DC (22AWG). Voltage rating: 250V AC/DC.

Quote Now

JST VH connector wire harness

Connector support from 2Pin to 11Pin. Terminal fit for 22AWG~16AWG (OD: 1.7-3.0mm). Header support from 2P to 11P. Current rating: 10A AC/DC (16AWG). Voltage rating: 250V AC/DC.

Quote Now

Competitive Price
We closely collaborate with JST China agency, regularly consulting them to meet our requirements. They not only offer prompt delivery but also provide a competitive price compared to other competitors.
Quote Now

Large Quantity in Stock
Our regular stocked series connector, which includes SUR, SH, GH, SZN, ZH, PH, SAN, JWPF, SCN, SM, EH, NH, PA,XH,VH and more varieties are readily available to meet your needs. By having these connectors in stock at all times we can significantly reduce delivery time for you. This means that once you place an order with us for any of these connectors mentioned above or others from our stocked series range,you can expect a faster turnaround time.
Quote Now

Alternative parts available
Some of the connectors have replacements available in the Chinese market, which offer the same quality as the original brand but at a better price and with shorter delivery times. If you are open to using equivalents, we can provide samples for you to test their quality.
Please rest assured that even if you choose the original brand, we will not substitute it with a replacement. The original brand typically features the JST logo, while replacements do not. Furthermore, it is important to note that this is not a one-time business transaction; we are a trusted company.
Quote Now

Stable quality
why our price always competitive but still offer high quality assembly service?
1. Stringent supplier audit is conducted to ensure a consistent supply of high-quality raw materials.
2. Impeccable IQC/IPQC/OQC quality control measures are implemented to significantly reduce the occurrence of defects.
3. State-of-the-art automated wire cutting, stripping, tinning, and crimping integrated machines are extensively utilized in accordance with IPC/WHMA-A-620 standards.
4. A comprehensive 100% continuity test is performed to guarantee that all products exhibit no circuit shorts, mismatches, or isolation breaks that could potentially cause harm.
Quote Now

Support Custom wire harness
We are proud to offer our expertise in providing custom wire harness solutions. Our team of skilled professionals is dedicated to meeting the unique needs and specifications of our clients. With years of experience in the industry, we understand the importance of delivering high-quality wire harnesses that are tailored to specific applications.
Quote Now

Free of Quote
Please let us know the JST connector you require, also wire length, gauge, color, electric circuits, and order quantity. We will provide a quotation within three working days.
Additionally, we can also offer pricing based on drawings or samples.
Quote Now

How to Custom Your Wiring Harness

Quote Now

FAQ

1. How to customized my own products?

Send your sample or drawing/schematic requests → Feedback with quotation(1~3days) → Confirm quotation and make deposit payment → Make overmold if needed (7 days) → Mold test → Making samples(1~3 days) → Samples test(Approval) → place order for Mass production(2~3weeks) → Quality checking → Packing → Delivery → After Service → Repeat Order.

2. Can you provide us with samples?

We specialize in customized designs and made Samples are available free of charge(Value below $5.00 per unit, final costs depend on real needs) Sample lead time 3~10 working days

3. What delivery time for the regular order?

We deliver quality products on time every time, within 30 days of receiving confirmed orders. We support customers picking up goods from our factory directly.

4. What payment do you support?

T/T, Credit Card, and PayPal are available.

5. Can you help export goods to us?

We support Door-to-Door Delivery Services, small packages by Express like DHL, FedEx, UPS, etc. large volume shipping by air, sea, and train. We support customs and tax clearance, and small value no customs duties.

6. What is the warranty policy?

After Sales Service:Continuous and satisfactory service for repair or replacement, Strong support for failure analysis. Warranty Time:1~3 years.

7. HelpBuy Support:

If you require procurement assistance from other factories and consolidation of all goods into a single batch shipment, we can offer our buying service to help facilitate the process and ensure proper packing for shipping to your location.

8. Warehouse Support:

You order from us but do not require all goods to be shipped at once, we are able to assist in separating multiple batches according to your preference and ship them to you in any desired quantity.

Request A Quote

HOOHA WIRE AND CABLE PRODUCTS

Hooha Harness is a leading contract manufacturer dedicated to providing custom wire harnesses, over-mold cables, DC power cables, and wire & cable harness assembly service.
