Cable Strain Relief (SR) Assembly

A Cable Strain Relief, also known as a cable gland or cord grip, is a device used to secure and protect cables or wires that are connected to electrical equipment. It is designed to relieve the strain on the cable by providing support and preventing it from being pulled out or damaged due to tension, vibration, or movement.

Cable strain reliefs are commonly used in various industries such as manufacturing, automotive, telecommunications, and electronics. They play a crucial role in ensuring the longevity and reliability of electrical connections by reducing stress on the cables.

These devices typically consist of two main components: a body and a sealing nut. The body houses the cable while the sealing nut secures it in place. The design may vary depending on specific requirements such as environmental conditions (e.g., waterproofing) or cable type (e.g., fiber optic cables).

In addition to providing mechanical support, cable strain reliefs also offer protection against dust, moisture, chemicals, and other external factors that could potentially damage the cables. This helps maintain optimal performance and prevents costly repairs or replacements.

Installation of a cable strain relief involves inserting the cable through an opening in the body and tightening the sealing nut until it forms a tight seal around the outer sheath of the cable. This ensures that no excessive force is applied directly onto sensitive internal wiring connections.

Cable Strain Relief Assembly

1000+ Sets Custom Cable SR Tools
Our company takes pride in offering a wide range of high-quality custom cable SR tools. With over 1000 sets available, we are able to meet the diverse needs and specifications of our customers. These tools have been carefully designed and manufactured to ensure optimal performance and durability.

Get An Instant Quote

Why Choose Us?

200+ professional skill people work for your projects

20+ Years Focus one Wire Harness Assembly

6000+ Project Cases Experience

6,000,000pcs Wire Harness Capacity per Year

IPC/WHMA-A-620 Standard

1000+ Overmold Developing Tools Experience

Quote Now

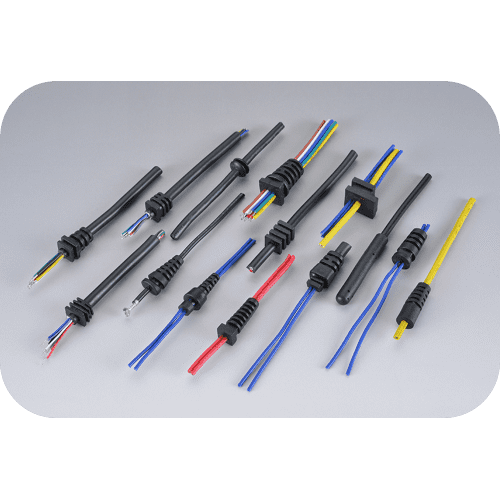

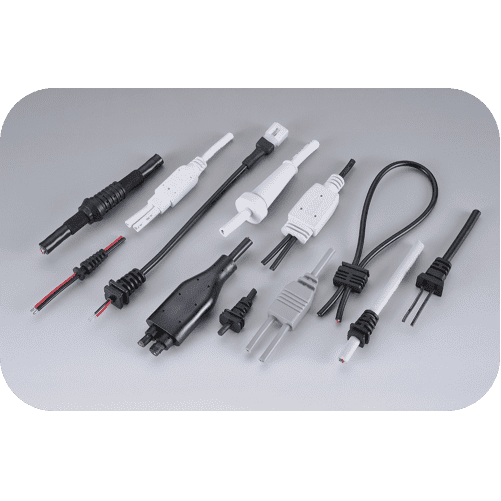

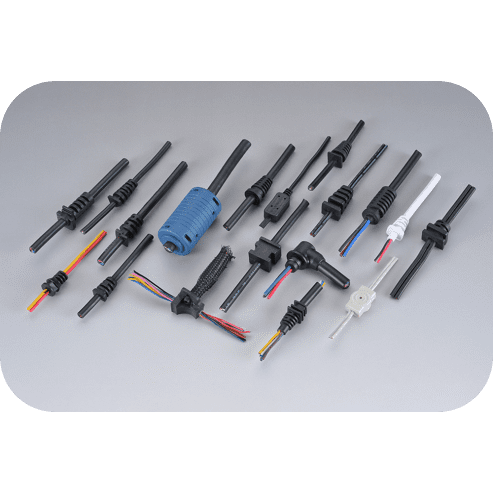

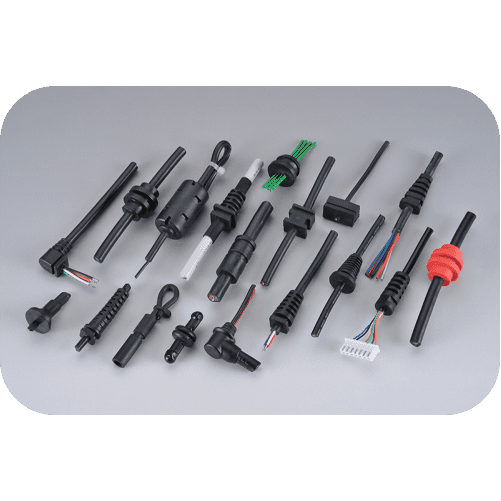

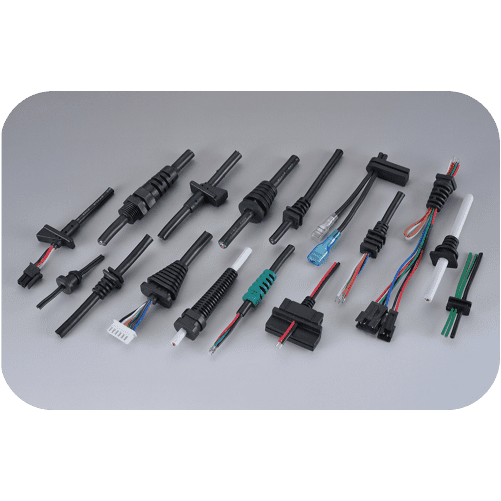

Cable Strain Relief (SR) Assembly Cases

SR for cable stop

The SR on the cable serves a function in ensuring that the cable remains securely in place and does not move excessively in any direction. This is designed to provide stability and prevent unnecessary strain or stress on the cable, which can lead to damage or disconnection.

Quote Now

SR for catch to the box

The SR on the cable is sometimes designed to secure it to the enclosure box, particularly when the cable is soldered to the PCB and the soldering point is not very strong. In such cases, this Strain Relief can help reduce tension force and protect the connection.

Quote Now

SR for fix the magnet ring

The cable, such as a VGA cable, should be equipped with a magnet ring. In order to secure the magnet ring onto the cable, the most effective method is to overmold it with a strain relief (SR).

Quote Now

SR for durability

One of the primary functions of cable SR is to ensure durability and longevity, not only for the cable itself but also to protect the connections it is attached to. This design feature plays a crucial role in preventing damage or wear and tear that can occur due to constant movement, tension, or stress on the cables.

Quote Now

SR for artistic

One of the functions for cable strain relief is to provide an aesthetically pleasing design that enhances the overall elegance of your products. By incorporating a beautiful SR design, not only does it serve its practical purpose of relieving strain on cables, but it also adds a touch of sophistication and refinement to your product.

Quote Now

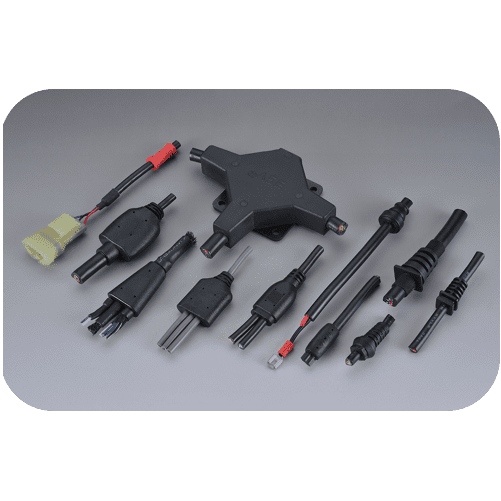

SR for cable distribute

Some of cable strain relief are designed to distribute the cable in different directions, resulting in variations such as "T" type or "Y" type, and even splitting up to 10 cables for connection with different devices.

Quote Now

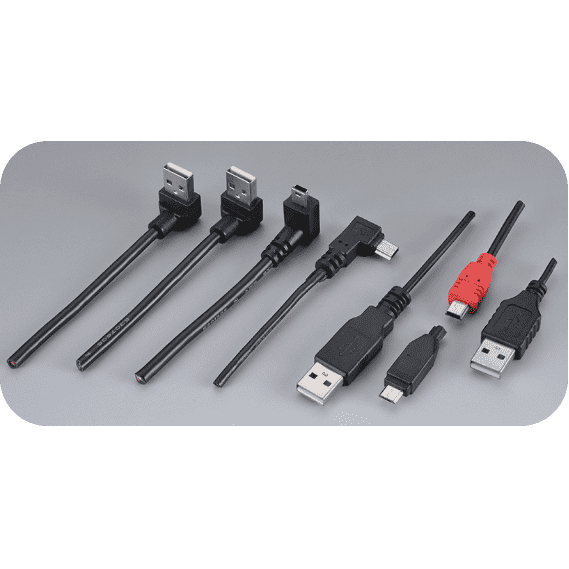

SR use to the USB Connectors

Custom SR overmold for USB cable A type, B type, C type, Mini USB, Micro USB, male and female, straight and right angle, over-mold materials support PVC 45P and 60P, color support black, white, red, yellow, etc.

Quote Now

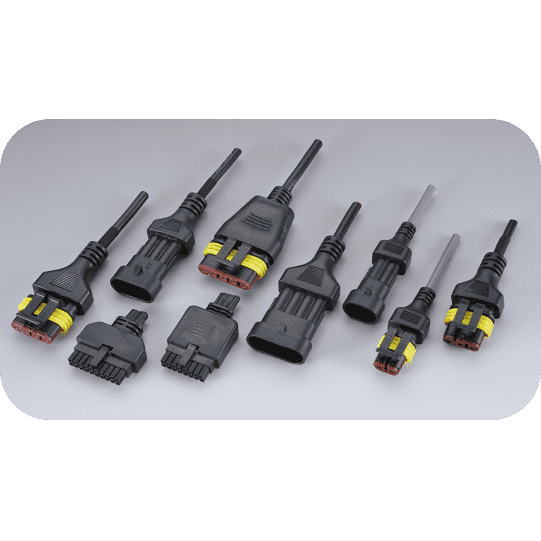

SR use to the AMP connector

Custom SR overmold for TE AMP Superseal 1.5 series connector, male and female, over-mold materials support PVC 45P and 60P, color support black, white, red, yellow, etc.

Quote Now

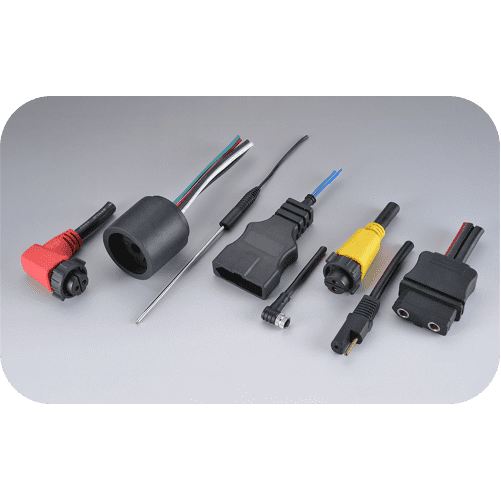

SR use to the Power Connectors

Custom SR overmold for power connectors, AC power cords, current rate over 130A max, over-mold materials support PVC 45P and 60P, color support black, white, red, yellow, etc.

Quote Now

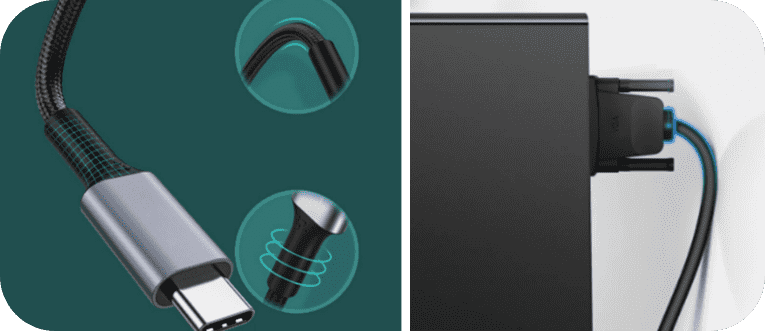

SR Function
The strain relief or cable gland can protect the wires and cables by securing the wire and cable to the electrical equipment panel. It helps prevent stress and damage as it passes through the equipment panel. Although it doesn't relieve strain on the cable when it exits the equipment, it does alleviate strain on the electrical connection and circuitry inside.
Quote Now

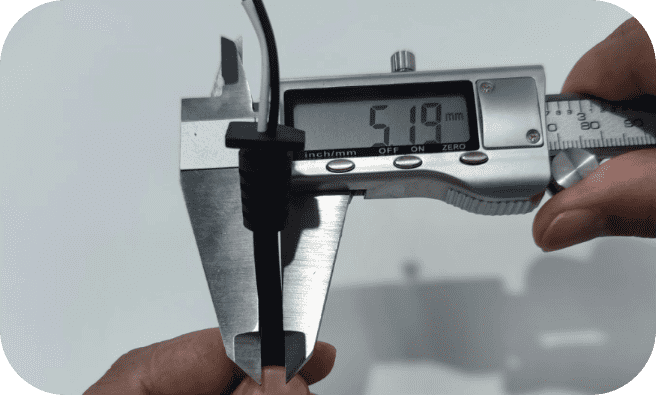

Different cable OD need a different SR
The SR is overmolded onto the cable, ensuring a secure attachment. As a result, each unique SR fits a specific OD cable. If the cable's outer diameter changes, it may not fit as tightly, necessitating the creation of new overmold tools to accommodate the new cable.
Quote Now

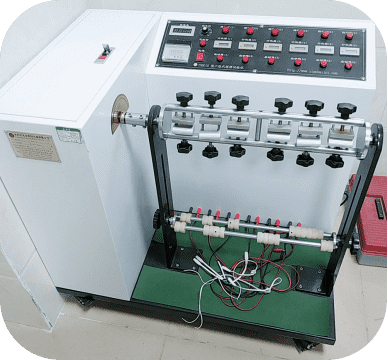

SR Test
The SR test usually assesses the durability by conducting the swing test, which typically involves approximately 3000 to 5000 cycles. The final outcome is influenced by various factors such as weight load, testing angle, material hardness, and so on.
Quote Now

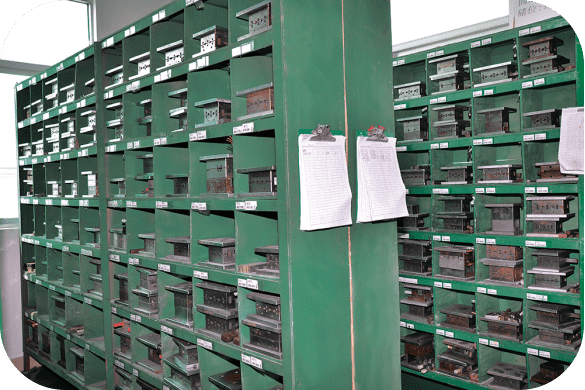

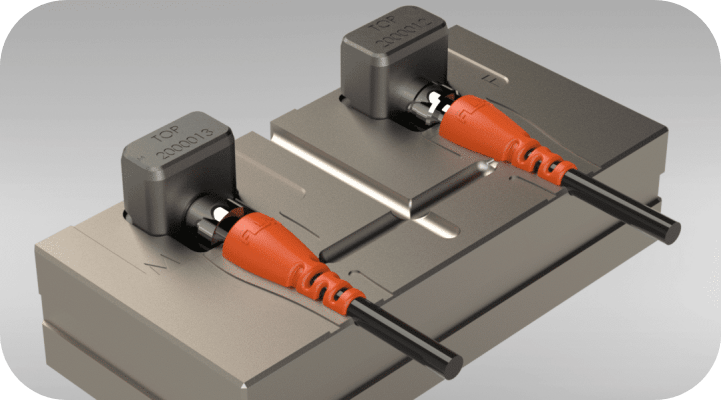

200+ overmold tools SR in stock
We possess an extensive collection of over 200 sets of SR overmold tools catering to various cable types. If you wish to minimize product development costs, you can select one of our existing public SR overmolds that best suits your device. Alternatively, if you desire a distinctive SR design, please feel free to contact us for the development of a unique overmold specifically tailored for your cables.
Quote Now

Materials
Polyvinylchloride (PVC)
Polyurethane (PU)
Thermoplastic elastomer (TPE)
Thermoplastic polyester elastomer (TPEE)
Thermoplastic vulcanizate (TPV)
Silicone
Quote Now

Widely Application
Patient monitoring systems
Robotic systems and control cables
Avionic systems
Guidance and control systems
Military equipment
Automotive components
Telecommunications relays
Solar panel connectors and battery systems
Heavy agricultural equipment
The possibilities for applications of over-molded cable assemblies are endless. Due to their versatility, these components can be found in a wide range of industries, making them an essential part of the ever-changing industrial landscape.
Quote Now

How to Custom Your Wiring Harness

Quote Now

FAQ

1. How to customized my own products?

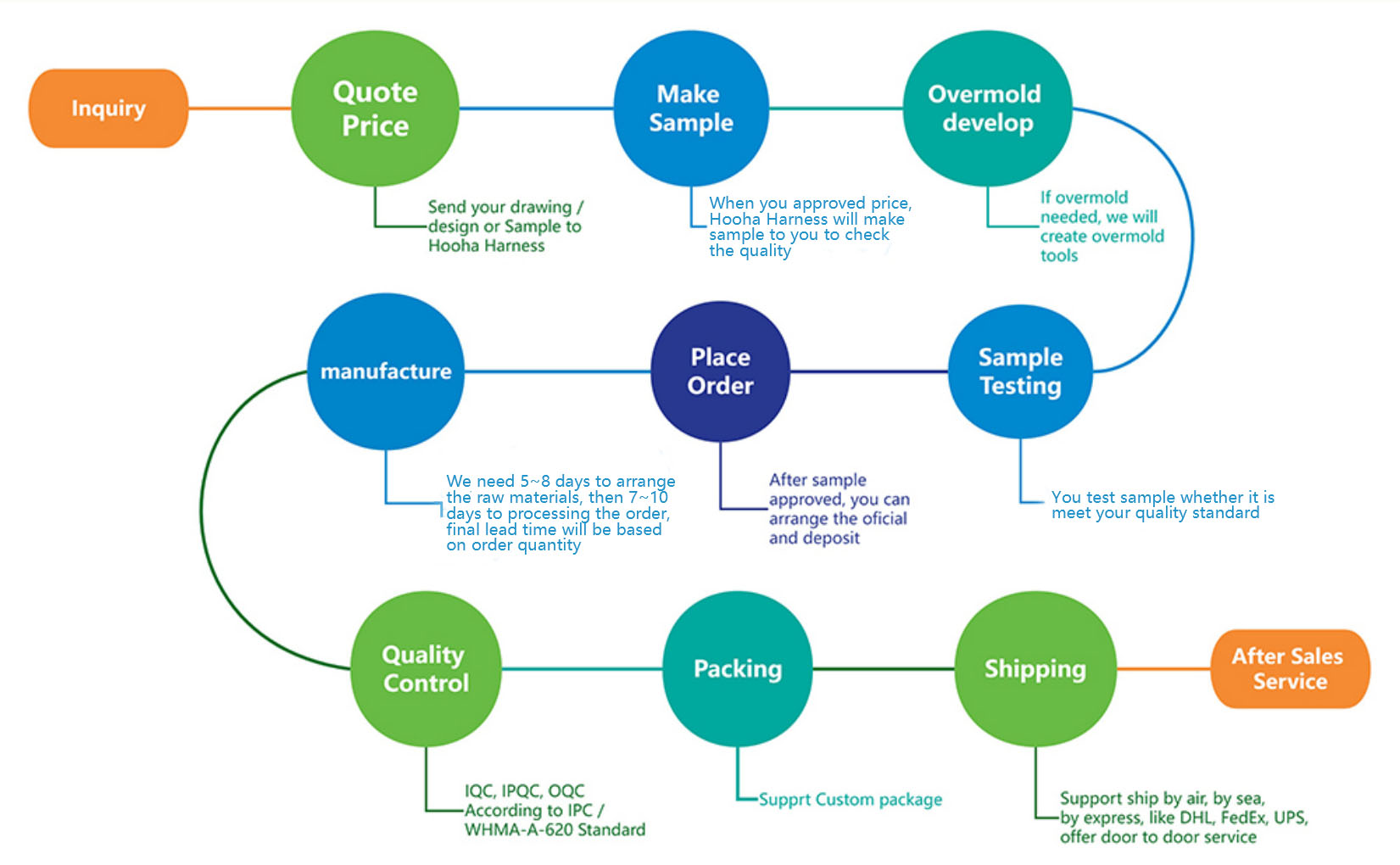

Send your sample or drawing/schematic requests → Feedback with quotation(1~3days) → Confirm quotation and make deposit payment → Make overmold if needed (7 days) → Mold test → Making samples(1~3 days) → Samples test(Approval) → place order for Mass production(2~3weeks) → Quality checking → Packing → Delivery → After Service → Repeat Order.

2. Can you provide us with samples?

We specialize in customized designs and made Samples are available free of charge(Value below $5.00 per unit, final costs depend on real needs) Sample lead time 3~10 working days

3. What delivery time for the regular order?

We deliver quality products on time every time, within 30 days of receiving confirmed orders. We support customers picking up goods from our factory directly.

4. What payment do you support?

T/T, Credit Card, and PayPal are available.

5. Can you help export goods to us?

We support Door-to-Door Delivery Services, small packages by Express like DHL, FedEx, UPS, etc. large volume shipping by air, sea, and train. We support customs and tax clearance, and small value no customs duties.

6. What is the warranty policy?

After Sales Service:Continuous and satisfactory service for repair or replacement, Strong support for failure analysis. Warranty Time:1~3 years.

7. HelpBuy Support:

If you require procurement assistance from other factories and consolidation of all goods into a single batch shipment, we can offer our buying service to help facilitate the process and ensure proper packing for shipping to your location.

8. Warehouse Support:

You order from us but do not require all goods to be shipped at once, we are able to assist in separating multiple batches according to your preference and ship them to you in any desired quantity.
